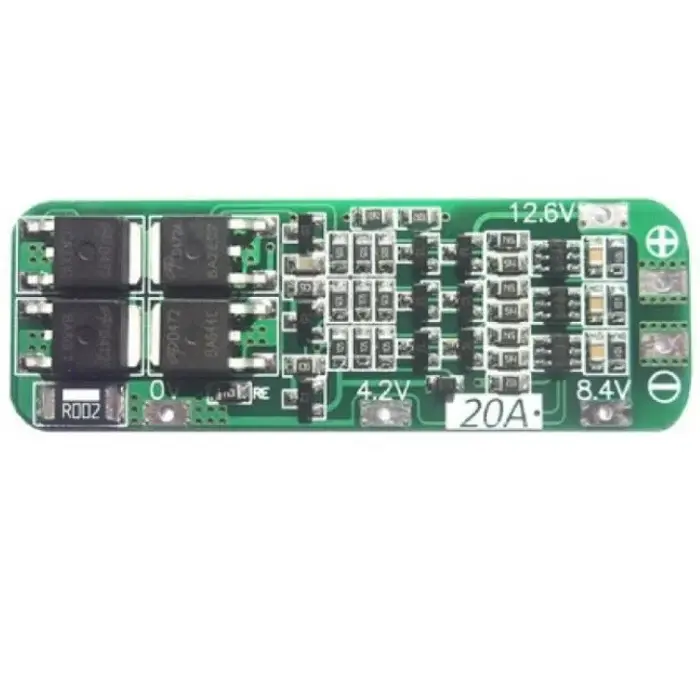

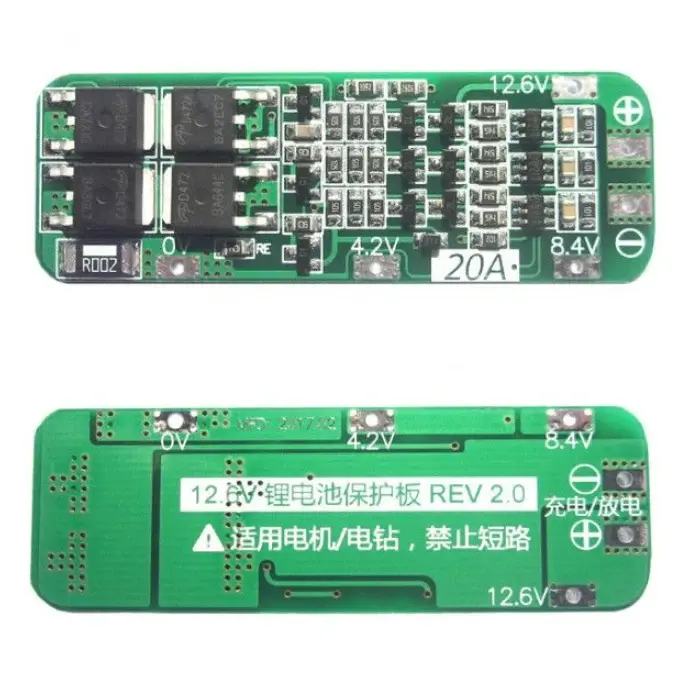

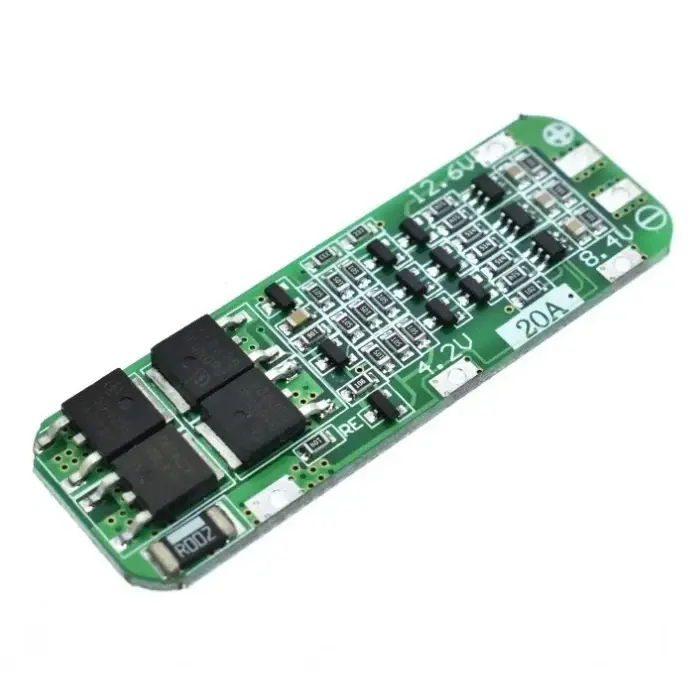

The 3S 20A Lithium Battery Protection Board is a high-performance Battery Management System (BMS) designed for 3-cell lithium-ion battery packs. Compatible with 3.6V and 3.7V lithium batteries, including 18650, 26650, and lithium polymer cells, this board provides comprehensive protection and reliable power management for a wide range of battery-powered applications.
Featuring an automatic recovery function, the BMS restores normal operation once fault conditions are cleared, ensuring uninterrupted performance and enhanced battery safety. With support for continuous charge and discharge currents up to 20A, it is ideal for high-power applications such as cordless drills, electric sprayers, LED lighting systems, robotics, and low-power inverters.
The board incorporates multiple low-resistance MOSFETs and a balancing circuit to improve battery efficiency, extend battery life, and maintain consistent performance across all connected cells.
Key Features
Designed for 3S lithium-ion battery packs (11.1V nominal, 12.6V fully charged)
Compatible with 18650, 26650, and lithium polymer batteries
Automatic recovery after protection activation
Overcharge protection
Over-discharge protection
Overcurrent protection
Short-circuit protection
Cell balancing for improved battery health
High-efficiency MOSFET design with low internal resistance
Supports continuous charge and discharge currents up to 20A
Compact and lightweight PCB design
Technical Specifications
Specification
Value
Battery Configuration
3S (3 Cells in Series)
Compatible Battery Types
18650, 26650, Li-ion, Li-Polymer
Nominal Battery Voltage
11.1V
Fully Charged Voltage
12.6V
Continuous Charge Current
Up to 20A
Continuous Discharge Current
Up to 20A
Balancing Current
100mA
Auto Recovery
Supported
Suitable Drill Power
Up to 135W
Recommended Starting Current
Below 80A
Dimensions
Approx. 46 × 60 × 3.4 mm
Applications
Cordless drills and power tools
Electric sprayers
DIY battery packs
LED lighting systems
Portable power solutions
Robotics and automation projects
Low-power inverters
Energy storage and backup systems
Installation Guidelines

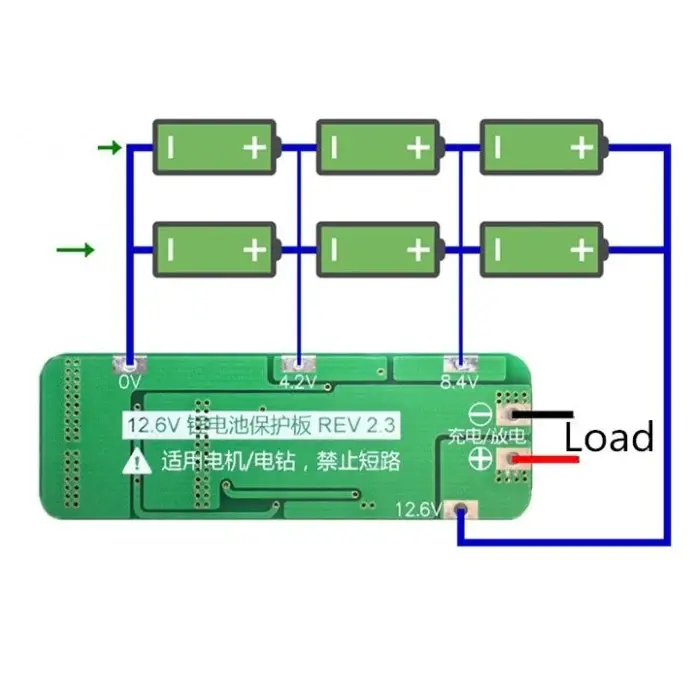

Connect battery groups strictly according to the voltage sequence: 0V → 4.2V → 8.4V → 12.6V.
Never intentionally short-circuit the protection board.
Ensure all battery groups have similar voltage levels before connecting them in series.
For optimal performance, charge each battery group individually if voltage differences exist.
When used with brushed DC motors, connect a non-polar capacitor (10µF–100µF, minimum 25V rating) across the motor terminals to suppress voltage spikes and protect the MOSFETs.
Important Notes
Standard low-drain 18650 cells may not be suitable for powering high-current tools such as drills.
For drill applications, use high-discharge-rate battery cells (15C–20C recommended).
Ensure adequate ventilation and cooling when operating near maximum current ratings.
Monitor battery condition regularly and replace weak cells to maintain balanced pack performance.
Benefits
This 3S 20A Lithium Battery Protection Board provides advanced battery safety, automatic fault recovery, and efficient cell balancing, making it an excellent solution for demanding lithium battery applications. Its robust design, high current capacity, and reliable protection features help maximize battery lifespan while ensuring safe and stable operation.
Charging voltage
4.2V
Over Charge Protection
4.25V ±05V
Over Discharge Protection
2.45V ±05V
Max Working current
20A
Max peak current
20V
Life cycle
> 30000 hours
